Routing Agent Pattern: Smart Task-to-Agent Selection

Pattern essence

Routing Agent is a pattern in which an agent chooses which other agent or tool should execute a task.

When to use: when you first need to choose the best executor or tool for a specific task.

Instead of executing everything on its own, it:

• analyzes the task
• determines who can execute it
• delegates it to the appropriate agent

Problem

Imagine there are several specialists in the system:

• UI Agent for frontend tasks
• Finance Agent for financial calculations
• Code Agent for technical changes

The user sends different requests, but without a routing step, they are assigned not by specialization, but to a "random" executor.

The problem is not that the agents are weak, but that the system cannot consistently choose the right executor.

As a result:

• a specialized request goes to the wrong agent
• quality drops due to loss of specialization
• time increases because of extra attempts "outside the domain"
• the route becomes unpredictable

That is the problem: without a controlled routing step, even a simple task can be handled by the "wrong" agent and produce a weak result.

Solution

Routing adds a separate executor-selection stage before execution.

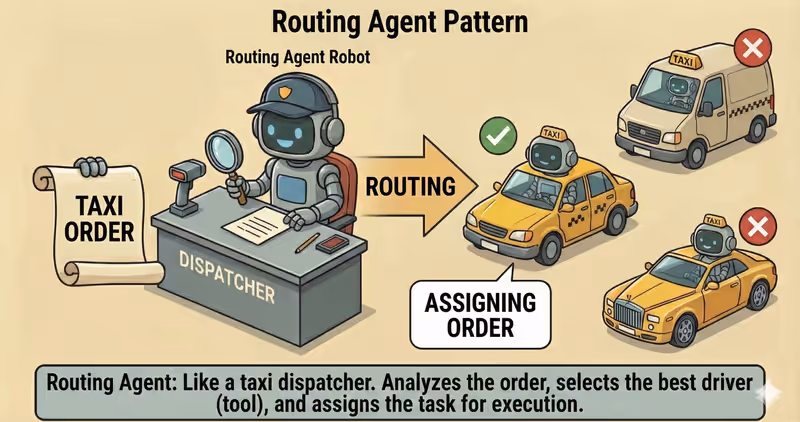

Analogy: it is like a dispatcher in a service center. The dispatcher does not do the repair, but decides which specialist should receive the request. That is exactly what reduces mistakes and unnecessary reassignments.

Key principle: first the correct executor choice, then task delegation.

The Router does not do the work itself. Its role is to control the route:

1. Analyze: classify the request
2. Decide: choose an agent by routing-rules
3. Delegate: pass the task to the executor
4. Re-route (Fallback, if needed): switch executor on mismatch or error

The diagram below shows the basic route: choose one executor and pass the task to it.

This gives:

• higher accuracy through specialization
• fewer extra steps and lower latency
• a transparent route for debugging and control
• lower risk of executor-selection mistakes

Works well if:

• there are clear classification rules
• agent roles do not overlap chaotically
• a fallback route is defined
• the routing step (router) is not bypassed directly by the user or worker logic

Even if the model "wants" to pass the task to the first available agent, the routing-policy is what fixes who must actually execute it.

How it works

The Router does not execute the task itself.

It only delegates to a specialized agent, which executes the subtask through its own loop: Reasoning (Think) -> Action (Act) -> Observation (Observe).

In code it looks like this

agent = route(goal)  # Router classifies the goal and chooses a specialized executor.

result = agent.run(goal)  # Execution is done by the selected agent, not the Router.
return result

How it looks during execution

Goal: "How much tax should be paid from freelance income?"
Analyze: finance task
Decide: choose Finance Agent
Route confidence: 0.92 (finance)
Delegate: system passes the task to Finance Agent
Observe: Finance Agent returns the calculation

Goal: "Change the button color on the landing page"
Analyze: frontend task
Decide: choose UI Agent
Route confidence: 0.89 (ui)
Delegate: system passes the task to UI Agent
Observe: UI Agent returns the updated component

The Router only chooses the executor and delegates the task.

Result quality depends on how correct this choice is.

When it fits - and when it does not

Fits

Does not fit

Because Routing adds an extra processing step. If tasks do not differ, it only slows execution down.

When to use Routing among other patterns

Use Routing when the key is to choose correctly whom to delegate the request to.

Quick test:

• if you need to "identify the best executor" -> Routing
• if you need to "run a task through clear steps" -> Orchestrator Agent

How to combine with other patterns

• Routing + Task Decomposition - first split the task into parts, then Routing sends each part to the right agent.
• Routing + Orchestrator - Routing chooses the executor, while Orchestrator coordinates parallel tasks and their dependencies.
• Routing + Supervisor - Supervisor checks whether executor choice matches policies and risk level.

In short

Pros and Cons

FAQ

Q: Can the Router execute the task itself?
A: No. It only determines who should execute it.

Q: Is Routing needed if there is only one agent?
A: No. In that case, it adds an unnecessary step.

Q: Can the route be changed during execution?
A: Yes. If the selected agent cannot execute the task or returns an error, the Router can pass it to another agent.

What next

Routing lets you choose the right agent.

But what if tasks need to run in parallel?
